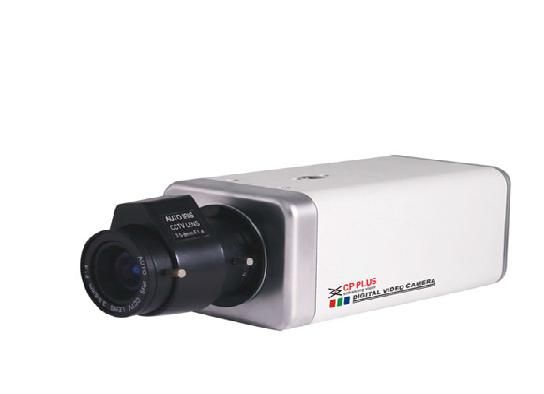

Product : CP PLUS BY60M-E
1/3" Sony CCD- 600 TVL High Resolution Camera
- 0.05 lux @ F1.2
- C/CS Mount Lens
- AGC, AES, BLC, Mirror, Privacy Masking
- CE, FCC and RoHS Certified
Feature Specification
Image Sensor 1/3" Sony CCD
Pixels PAL:752Hx582V, NTSC:768Hx494V
Resolution 600 TVL
Min. Illumination 0.05 lux @F1.2
S/N Ratio more than 48dB
Electronic Shutter 1/50(1/60) - 1/100000 Sec
Flickerless Mode ON/OFF
Iris Control Video/DC/Manual
Gamma Correction 0.45
White Balance (AWB) ON/OFF Selectable
Gain Control (AGC) ON/OFF Selectable
Back Light Compensation ON/OFF Selectable
Sync Internal
Video Output 1.0 Vp-p/75 ohm
Special Functions OSD, Camera ID, Camera Title, Mirror, Privacy Masking=7, Motion Detection=4
Power Supply DC 12V ± 5%
Power Consumption <4W
Dimensions 114 x 50 x 60mm
Weight 500g
Operating Temperature -20~50 °C
Certifications CE, FCC, RoHs
