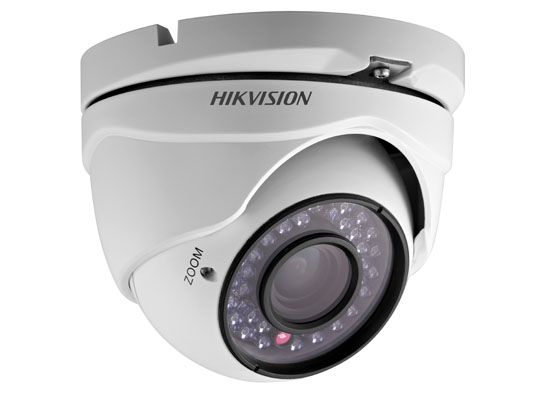

Product : HIK VISION DS-2CE5582P(N)- VFIR3
True Day/Night- 600 TVL Horizontal Resolution
- 2.8 - 12 mm /F1.4 Vari-focal Lens
- 40m IR Distance
- Wide Operating Temperature Range
Sensor 1/3" DIS
Signal System PAL/NTSC
Effective Pixels 720(H)×480(V)
Min. Illumination
0.1Lux @ (F1.2,AGC ON),0 Lux with IR
0.14Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter speed
PAL: 1/25 s to 1/15,000 s
NTSC: 1/30 s to 1/15,000 s
Lens
2.8-12mm @ F1.4
Angle of view: 92° - 27.2°
Lens Mount φ14
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
Day & Night IR cut filter with auto switch
Horizontal Resolution 600 TVL
Synchronization Internal synchronization
Video Output 1Vp-p composite output (75 Ω/BNC)
S/N Ratio More than 52 dB
BLC On
General
Working Temperature/Humidity
-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply 12 V DC ± 10%
Power Consumption Max. 4 W(Max. 6.5 W with IR cut filter on)
Ingress Protection level IP66
IR Range Approx. 30 to 40 meters
Dimensions 134.21 × 123.85 × 91.42mm(5.28” × 4.88” × 3.60”)
Weight 800g (1.76l lbs)
