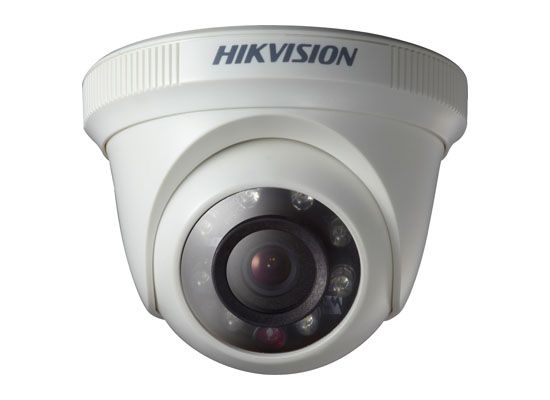

Product : HIK VISION DS-2CE5582P(N)-IRP
600 TVL resolution- 20m IR range
- Low illumination
- True day / night
- 3-axis adjustment
- Wide operating temperature range
DS-2CE5582P(N)-IRP
Camera
Image sensor 1/3” DIS
Signal system PAL/NTSC
Effective pixels 720 (H) × 480 (V)
Min. illumination
0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR
0.2 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter time
PAL: 1/25 s to 1/15,000 s
NTSC: 1/30 s to 1/15,000 s
Lens
3.6 mm @ F1.8 (6 mm optional)
Angle of view: 70.6° (3.6 mm)
Lens mount M12
Angle adjustment Pan: 0 - 360°; Tilt: 0 - 85°; Rotation: 0 - 360°
Day / night IR cut filter with auto switch
Horizontal resolution 600 TVL
Synchronization Internal synchronization
Video output 1Vp-p composite output (75 Ω/BNC)
S/N ratio More than 52 dB
General
Operating conditions
-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power supply 12 VDC ± 10%
Power consumption
Max. 2 W
(Max. 5 W with IR cut filter on)
IR Range Approx. 10 to 20 meters
Dimension Φ 89.5 × 69.8 mm (Φ 3.52” × 2.75”)
Weight 200 g (0.44 lbs)
