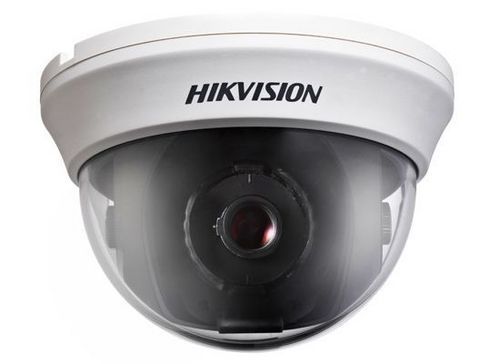

Product : HIK VISION DS-2CC5191
1/3†SONY EXview HAD CCD- PAL / NTSC
- PAL: 976 (H) × 582 (V),
- Color: 0.001 Lux @ (F1.2,
- B/W: 0.0001 Lux @ (F1.2, AGC ON)
- Color: 0.0014 Lux @ (F1.4, AGC ON)
Shutter time
PAL: 1/50 s to 1/100,000 s
NTSC: 1/60 s to 1/100,000 s
Lens
2.8 - 12 mm @ F1.4
Angle of view: 92° - 27.2°
Lens mount φ14
Auto Iris DC drive
Angle adjustment Pan: 0 - 355°, Tilt: 0 - 180°, Rotation: 0 - 355°
Day & night IR cut filter with auto switch
Horizontal resolution 650 TVL (Color), 700 TVL (B/W)
Wide Dynamic Range Digital Digital Digital 75 dB
Synchronization Internal / power synchronization
Video output
1Vp-p composite output (75 Ω/BNC)
Test monitor out [1Vp-p composite output (75 Ω/BNC), device line]
S/N ratio More than 62 dB
Menu
Camera ID
On / Off (52 letters, position
adjustable)
On / Off (16 letters, position
adjustable)
On / Off (16 letters, position
adjustable)
On / Off (16 letters, position
adjustable)
Auto Gain -- Low / Middle / High / Off
D/N Mode Auto / Day / Night
White Balance
ATW/Push/User1/User2/
Anti CR/Manual/Push lock
Auto trace WB1/Auto trace WB2/Manual/Auto Control
Private Mask On / Off, maximum 8 zones On / Off, maximum 12 zones
Motion Detection On / Off On / Off On / Off On / Off
BLC BLC/HLC/Off Area/Value/Off
WDR -- Value/ Contrast / Return
Anti-Flicker -- On/Off
Language English/Chinese
Function
ATR, HLC, DNR,
Sharpness, Brightness,
Contrast, Hue, Gain, Mirror,
Defect Pixel Correction
SMART IR, Digital Wide Dynamic Range, Eclipse, Digital
Noise Reduction, Sharpness, Brightness, Saturation,
Resolution, Electronic image stabilization, Digital Zoom,
Mirror, Defect Pixel Correction
SMART IR, Eclipse,
Digital Noise Reduction,
Sharpness, Brightness,
Saturation, Resolution,
Electronic image
stabilization, Digital
Zoom, Mirror, Defect Pixel
Correction
Scene --
Indoor Standard , Indoor Backlight , Outdoor, Low
illumination , IR Standard , Customize
Indoor Standard , Indoor
Backlight , Outdoor, Low
illumination , Customize
General
Operating conditions
-10°C ~ 60°C (14°F ~ 140°F)
Humidity 90% or less (non-condensing)
Power supply 24 VAC ± 10%, 12 VDC ± 10%
Power consumption
Max. 4 W
(Max. 4.5 W with IR cut filter on)
Dimensions φ 136 × 101 mm (φ 5.35” × 3. 98”)
Weight 800 g (1.76 lbs)
