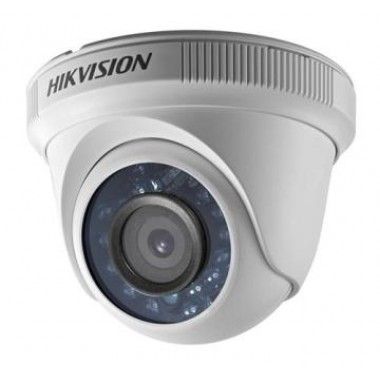

Product : DS-2CE56D1T-IRP
2 Megapixel high-performance CMOS- Analog HD output, up to 1080P resolution
- True Day/Night, Smart IR
- Up to 20m IR distance
- OSD menu
- Up the Coax(HIKVISION-C Protocol)
- Lens: | 3.6mm, 6mm optional, Angle of View: 91.3°(3.6mm), 59.9°(6mm)
Camera Image Sensor 2MP CMOS Image Sensor Signal System PAL/NTSC Effective Pixels 1930(H)*1088(V) Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR Shutter Time 1/25(1/30)s to 1/50,000s Lens 3.6mm, 6mm optional Angle of View: 91.3°(3.6mm), 59.9°(6mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° Synchronization Internal synchronization Video Frame Rate 1080p@25fps/1080p@30fps HD Video Output 1 Analog HD output S/N Ratio ＞62dB Menu Camera ID On/off (0-255) AGC Support D/N Mode Color/BW/Auto/EXT White Balance Auto/User/Push/8000K/6000K/4200K/3000K Privacy Mask On/Off, maximum 2 zones Motion Detection On/Off, maximum 4 zones BLC Support Anti-flicker On/Off Language English/Chinese Functions Digital noise reduction, Mirror General Operating Conditions -20 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing) Power Supply 12 VDC±15% Power Consumption Max. 4W IR Range Up to 20m Communication Up the coax, Protocol: HIKVISION-C(TVI output) Dimensions Φ89.5 × 69.8 mm(Φ3.52” × 2.75”) Weight 250 g
