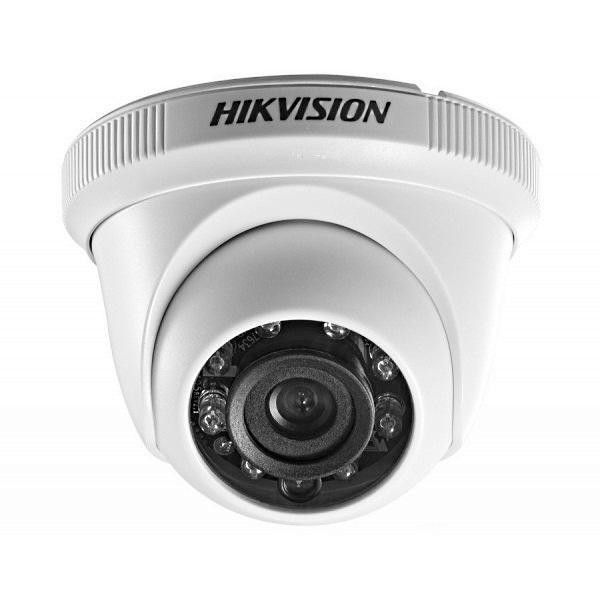

Product : DS-2CE56C0T-IRP
1 Megapixel high-performance CMOS- Analog HD output, up to 720P resolution
- True Day/Night
- DNR, Smart IR
- Up to 20m IR distance
mage Sensor 1MP CMOS Image Sensor Signal System PAL/NTSC Effective Pixels 1296(H)*732(V) Min. illumination 0.1 Lux @ (F1.2,AGC ON),0 Lux with IR Shutter Time 1/25(1/30)s to 1/50,000s Lens 2.8mm, 3.6mm, 6mm optional Angle of View: 70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° Synchronization Internal synchronization Video Frame Rate 720p@25fps/720p@30fps HD Video Output 1 Analog HD output S/N Ratio ＞62dB General Operating Conditions -20 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing) Power Supply 12 VDC±15% Power Consumption Max. 4W IR Range Up to 20m Dimensions Φ89.5 × 69.8 mm(Φ3.52” × 2.75”) Weight 250 g
