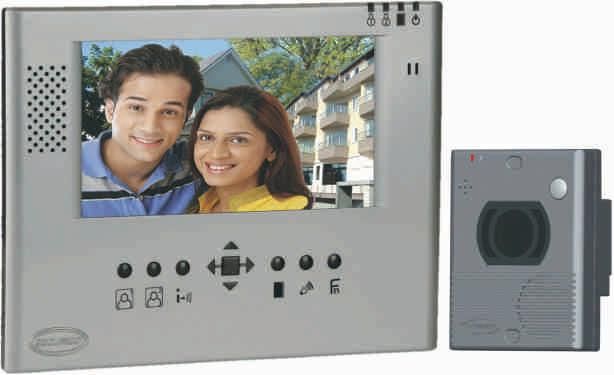

Product : Securico SEC - SLE 07C AC FMC
7" Colour TFT LCD display- Slimline Series - Slim & Sleek Design
- Hands Free Operation
- Micro Controller Based with digital circuit
- Can connect up to 4 monitors (1 main monitor and 3 sub-monitors)
- Can connect 2 cameras
- Can connect with surface mount or flush mount camera
TECHNICAL SPECIFICATIONS
V I D E O D O O R P H O N E S K I T 7” COLOUR HANDS FREE FEATURES
Indoor Monitor
Model SEC - SLE 07C AC FMC
Display 7" Colour TFT LCD
Power Supply Internal, SMPS +15V (0.8A), 5V (0.18A)
Power Consumption 16W Max
AC Input 220V/50Hz,
Input Range 140 - 260V AC
Communication Hands Free Half Duplex
Button Functions Monitor 1 , 2, Talk, Lock, Alarm, Display Settings and Volume
Mount type Surface Mount
Mounting Bracket Included
Maximum wire length from camera to last monitor 100m
TFT Resolution 1440 (H) x 234 (V) DOT
Wiring to Camera 1 Coaxial + 4
Wiring to Sub Monitor 1 Coaxial + 3
Connectors Terminal Block
Lock Connection Source Connection from Outdoor Camera & External Lock Control Module
Bell Sound Ding Dong
Security Alarm Sound Continuous Ding Dong in Monitor & Police Siren in Camera
Operating Temperature 5°C to 60°C
Dimensions (max.) 227mm (H) X 178mm (W) X 26mm (D)
Net Weight 705 gm
Outdoor Flush Mount Camera
Power Supply From indoor monitor
Power Consumption 2.75W Max
Camera Flush Mount: CCD 1/3" 420TVL (Adjustable Camera Angle)
Minimum Illumination 0.1 Lux F2.0
Lens 3.6mm F2.0
Night Vision White LED’s with 1mtr visibility
Connectors Flush Mount: Screw Type
Mount Type Flush Mount: Partially Flush
Mounting Bracket Flush Mount: N/A
Operating Temperature 5°C to 60°C
Siren Sound Police Siren
Lock Type NO / NC Type Electronic, Strike, Release, Electromagnetic, Others
Lock Power Supply External, Not Included
Bell Sound Ding Dong
Dimensions (max.) Flush Mount: 125mm (H) X 100mm (W) X 66mm
