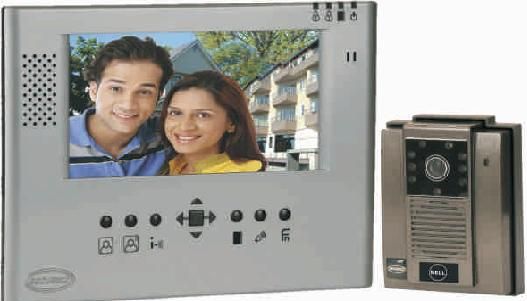

Product : SECURICO SEC - SLE 07C DC SMC
7" Colour TFT LCD display- Slimline Series - Slim & Sleek Design
- Hands Free Operation
- Micro Controller Based with digital circuit
- Can connect 2 cameras
- Can connect with surface mount or flush mount camera
- Inbuilt Security Alarm
TECHNICAL SPECIFICATIONS
w w w . s e c u r i c o e l e c t r o n i c s . c o m
V I D E O D O O R P H O N E S K I T 7” COLOUR HANDS FREE
FEATURES
Indoor Monitor
Model SEC - SLE 07C DC SMC
Display 7" Colour TFT LCD
Power Supply External SMPS
Power Consumption 16W Max
Communication Hands Free Half Duplex
Button Functions Monitor 1 , 2, Talk, Lock, Alarm, Display Settings and Volume
Mount type Surface Mount
Mounting Bracket Included
Maximum wire length from camera to last monitor 100m
TFT Resolution 1440 (H) x 234 (V)
Wiring to Camera 1 Coaxial + 4
Wiring to Sub Monitor 1 Coaxial + 3
Connectors Terminal Block
Lock Connection Source Connection from Outdoor Camera & External Lock Control Module
Bell Sound Ding Dong
Security Alarm Sound Continuous Ding Dong in Monitor & Police Siren in Camera
Operating Temperature 5°C to 60°C
Dimensions (max.) 227mm (H) X 178mm (W) X 26mm (D)
Net Weight 600 gm
Outdoor Surface Mount Camera
Power Supply From main monitor
Power Consumption 2.75W max
Camera Surface Mount: CCD 1/4" 420TVL
Minimum Illumination 0.1 Lux - F2.0
Lens 3.6mm F2.0
Night Vision White LED’s with 1mtr visibility
Connectors Surface Mount: Terminal Block
Mount Type Surface Mount: Surface / Partially Flush
Mounting Frame Surface Mount: Included
Operating Temperature 5°C to 60°C
Siren Sound Police Siren
Lock Type NO / NC Type Electronic, Strike, Release, Electromagnetic, Others
Lock Power Supply External, Not Included
Bell Sound Ding Dong
Dimensions (max.) Surface Mount: 127mm (H) X 96m
