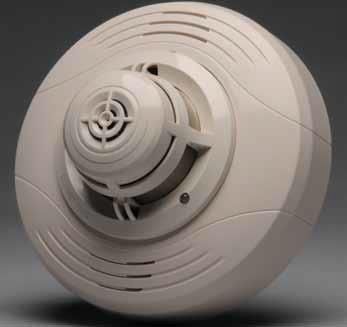

Product : FIRE SENSOR
Unique ability to detect all four major elements of a fire- Separate CO detection signal
- Highest nuisance alarm immunity
- Automatic drift compensation of smoke sensor and CO cell
- Uses only one address on the SLC
- RealTest® CO testing capability
- UL 268 and UL 2075 listed
- Separates audible signal for fire or CO alarm when used with the B200S base (B200SCOA in Canada
- CO cell end-of-life warning and fault
Physical Specifications
Height 3.46Ë installed in B200S base
Diameter 6.875Ë installed in B200S base
Shipping Weight 4.6 oz
Color Ivory
Material Bayblend FR110
Operating Humidity Range 15 to 90% relative humidity (non-condensing)
Application Temperature Range 32°F to 100°F (0°C to 38°C)
Air Velocity 0 to 4000 ft/min (0 to 20 m/sec)
Electrical Specifications
Operating Voltage Range 15 to 32 VDC
Maximum Standby Current 300 μA at 24 VDC (one communication every 5 seconds with LED blink enabled)
Maximum Alarm Current (LED on) 7.2 mA at 24 VDC
Sensitivity Settings and Suggested Applications
Level 1 1% / ft of smoke Very clean environments – laboratories
Level 2 2% / ft of smoke Clean environments – offices
Level 3 3% / ft of smoke Moderately clean environments –
hotel rooms, dorm rooms
Level 4 3% / ft of smoke with different algorithm
processing and weighting of sensor elements
Hotel rooms near a shower, boiler rooms
Level 5 4% / ft of smoke Equipment rooms, kitchens, paint shops
Level 6 Thermal alarm at 135°F (57°C)
* Once the CO cell has reached end-of-life, the CO sensor no longer provides life safety protection; however, when the fire detector enters
Photo, Thermal, Infrared (PTIR) mode, the following sensitivities apply:
Level 1 1% / ft of smoke Very clean environments – laboratories
Level 2 2% / ft of smoke Clean environments – offices
Level 5 3% / ft of smoke Moderately clean environments –
hotel rooms, dorm rooms
Level 6 Thermal alarm at 135°F (57°C)
©2011 System Sensor.
Product specifications subject to change without notice. Visit systemsensor.com
for current product information, including the latest version of this data sheet.
CMDS00301 • 1/12
Ordering Information
Part No. Description
AMCF/CO Advanced Multi-Criteria Fire/CO Detector – Due to the unique nature of this detector, please consult your Fire Alarm
Control Panel Manufacturer for specific model and compatibility
Accessories
B200S Addressable Sounder Base
B200SCOA Addressable CO Sounder Base (Canada only)
M02-04-01 Detector Test Magnet
M02-09-01 Telescoping Test Magnet
CO Monitoring UL Standard Reference – Alarm Thresholds are as Follows:
Parts Per Million Detector Response Time
70 ± 5ppm 60 – 240 min.
150 ± 5ppm 10 – 50 min.
400 ± 10ppm 4 – 15 min.
Per UL standard 2075, the AMCF/CO has been tested to the sensitivity limits defined in UL standard 2034.
