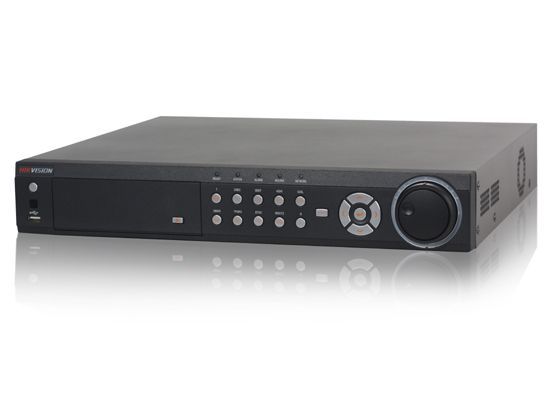

Product : CP PLUS DS-7308/7316HFI-ST
H.264 video compression- 4CIF resolution real time recording
- Simultaneous HDMI, VGA and CVBS output
- HDMI and VGA output up to 1920×1080P resolution
- eSATA interface for recording or archiving
- 8/16-ch synchronous playback
- JPEG picture capture and playback
- Dual stream
- Smart search playback
- Compatible with free Hikvision DDNS
- Tag video clip, search and playback by tag
- Digital zoom on live view and playback
Specifi cations
DS-7308HFI-ST DS-7316HFI-ST
Video / Audio input
Video compression H.264
Analog video input 8-ch, BNC (1.0 Vp-p,75 Ω),
PAL / NTSC self-adaptive
16-ch, BNC (1.0 Vp-p,75
Ω), PAL / NTSC selfadaptive
Audio compression G.711
Audio input 4-ch, RCA (2.0 Vp-p, 1 kΩ)
Voice talk input 1-ch, RCA (2.0 Vp-p, 1 kΩ)
Video / Audio output
HDMI output
(with HDMI audio output)
1-ch, resolution:
1920×1080 /60 Hz; 1600×1200 /60 Hz; 1280×1024 /60 Hz;
1024×768 /60 Hz.
VGA output
1-ch, resolution:
1920×1080 /60 Hz; 1600×1200 /60Hz; 1280×1024 /60 Hz;
1024×768 /60 Hz.
CVBS output
2-ch (1 Main Video Out+1 Spot Video Out),
BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704×576, NTSC: 704×480
Video loop out 8-ch 16-ch
Encoding resolution 4CIF / 2CIF / CIF / QCIF
Frame rate 25 fps (P) / 30 fps (N)
Video bit rate 32 Kbps ~ 2048 Kbps, or user defi ned (max. 3072 Kbps)
Audio output 2-ch, RCA (linear, 600Ω)
Audio bit rate 64 Kbps
Dual-stream Supported,
Sub stream: CIF / QCIF
Stream type Video, Video & Audio
Playback resolution 4CIF / 2CIF / CIF / QCIF
Synchronous playback 8-ch 16-ch
Storage
SATA 4 SATA interfaces, maximum 3 HDD with DVD burner bracket by default
eSATA 1 eSATA interface
Capacity Up to 4TB capacity for each disk
External interface
Network interface 1 ,RJ45 10M / 100M self-adaptive ethernet interface
Network bandwidth 60 Mbps output, up to 64 network streams
Serial interface
1 RS-232;
1 RS-485 for PTZ controlô€„
1 RS-485 for keyboard
USB interface 3, USB2.0
Alarm in 8 16
Alarm out 4
General
Power supply 100 ~ 240 VAC, 5A, 50~60Hz
Consumption ≤ 30W (without hard disk
or DVD-R/W)
≤ 35W (without hard disk
or DVD-R/W)
Working temperature -10 °C ~ + 55 °C (14 °F ~ 131 °F)
Working humidity 10% ~ 90%
Chassis 19-inch rack mountable 2 U chassis
Dimensions(W x D x H) 440 × 470 × 90 mm (17.32”x18.5”x3.54”)
Weight ≤ 8kg (without hard disk or DVD-R/W)
