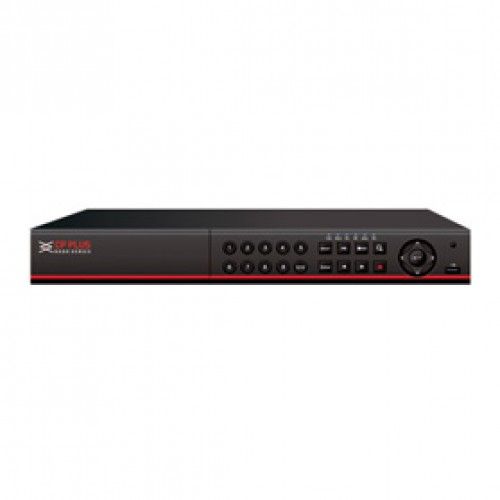

Product : CP PLUS CP-0804H-U
8 channels entry level simple 1U standalone DVR- Up to 8 cameras with SXGA(1280×1024) display
- H.264 video compression algorithm ideal
- Each channel at CIF or 6/7fps at D1 recording
- Dual encoding streams supported
- TV(BNC)/VGA synchronous video output
- Supports 1 SATA HDD, 2 USB2.0
- 8 channel simultaneous playback
Feature Specification
Processor High Performance Embedded Microprocessor
Operating System Embedded Linux
System Resources Pentaplex Functions: live, Recording, Playback, Backup & Remote access
User Interface GUI, on-screen menu tips
Control Devices Front panel, USB Mouse, Control Keyboard, IR Remote control, Network Keyboard
Video Input 8 Ch., BNC, 1.0Vp-p, 75Ω
Video Output 1 Ch. TV Out BNC, 1.0Vp-p, 75Ω, VGA, Max. Res.:1280x1024
Video Standard PAL: 625 Lines, 50f/s; NTSC: 525 Lines, 60f/s
Compression Video: H.264, Audio: G.711
Video Resolution D1(4CIF) NTSC:704x480, PAL:704x576, CIF NTSC:352x240 PAL:352x288, QCIF NTSC:176x120 PAL:176x144
Video Recording CIF/QCIF PAL:1FPS~25FPS, NTSC:1FPS~30FPS, 4CIF PAL:1FPS~6FPS, NTSC:1FPS~7FPS, 1st Ch. Full D1
Extra Stream QCIF PAL:1FPS~25FPS, NTSC:1FPS~30FPS,
Video Display Split Full and Multiple Screen Display, 1/4/8/9
Privacy Masking 4 Self defined four sided zones for each camera
Camera Adjustment Adjust color according to different time period
Video Information Camera title, time, video loss, camera lock, motion detection, recording
Audio Input 4 Ch. BNC, 200~280mV, 30KΩ
Bi-directional Talk Input 1 Ch. BNC, 200~280mV, 30KΩ
Audio Output 1 Ch. BNC, 200~280mV, 30KΩ
Motion Detection
Zones:396 (22*18) detection zones, Sensitivity:1~6 levels (level 6 is highest), Trigger Recording, PTZ movement,
tour, alarm, email, matrix output
Feature
Specification
Video Loss
Trigger Recording, PTZ movement, tour, alarm, email, matrix output
Camera Blank
Trigger Recording, PTZ movement, tour, alarm, email, matrix output
Alarm Input
8 Ch. Programmable, ground, manual open/closed, Trigger Recording, PTZ movement, tour, alarm, email, matrix output
Alarm Output
3 Ch., 30V DC, 1A, NO/NC, form-C
Hard Disk
1 SATA Ports, 1HDD supported, Max 2TB per port
HDD Management
HDD Hibernation technology, HDD faulty alarm
Recording Mode
Manual, Continuous, Video Detection (including motion detection, camera blank, video loss), Alarm
Recording Priority
Manual>Alarm>Video detection>Continuous
Search Mode
Time/date, Alarm, Motion detection & exact search (accurate to second)
Playback
All Ch. Simultanious playback, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection
Digital Zoom
Selected zone can zoom into full screen during live & playback
Backup Mode
Flash disk, USB HDD, USB CD/DVDRW, network download
Interface Ports
RJ45 x 1, USB 2.0 x 2, RS485 x 1
Protocols
TCP/IP, UDP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Email, Alarm Server
Remote Operations
Monitor, PTZ control, playback, system setting, file download, log information
Power Supply
220V 50 Hz / 110V 60Hz
Power Consumption
25W
Working Temp
10°C~55°C
Working Humidity
10%~90%
Dimensions
1U, 375mmx285mmx45mm (W*D*H)
Weight
2.35Kg without HDD
