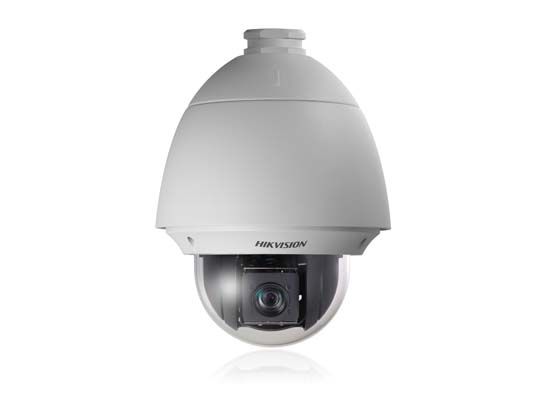

Product : HIK-VISION DS-2AF1-412/402



Image sensor 1 / 4" SONY Interline Transfer Super HAD-â…¡CCD
Effective pixel PAL:752(H)×582(V), NTSC:768(H)×494(V)
Horizontal resolution Color: 540 TVL, B / W: 600 TVL
Signal system PAL / NTSC
Min.illumination Color: 0.2Lux / (F1.6 AGC ON); B / W: 0.02Lux / (F1.6 AGC ON)
White balance Auto / ATW / Indoor / Outdoor / One push
AGC Auto / Manual
S / N ratio ≥ 50dB
DNR High / Medium / Low / off
BLC On / off
Shutter time PAL: 1 / 50-1 / 10,000s, NTSC: 1 /60-1 / 10,000s
Day & night IR cut filter
Digital zoom 16x
Privacy masking
8 privacy masks programmable;
a maximum of 8 zones can be masked simultaneously on the same video screen
Focus model Auto / Semiautomatic / Manual
Lens
Focal length 3.8-45.6mm,12x
Zoom speed Approx.2s(Optical Wide-Tele)
Angle of view 50.69 - 4.5° (Wide-Tele)
Min. working distance 10-1500mm (Wide-Tele)
Aperture range F1.6 - F2.7
Pan and tilt
Pan range 360° endless
Pan speed Pan Manual Speed: 0.1° -200° / s, Pan Preset Speed: 200° / s
Tilt range -2°-90° (Auto Mirror)
Tilt speed Tilt Manual Speed: 0.1°-120° / s, Tilt Preset Speed: 120° / s
Proportional zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of preset 255
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the total recording time not less than 10 min
Power loss recovery Support
Park action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ position display On / off
Freeze frame Support
Password protection Support
Zone scanning / display Scanning within programmed zone, display zone title
Camera title Programmable title display
Compass Support, the north can be set
Scheduled task Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
RS-485 communication diagnosis Including failure information, e.g., wrong address, baud rate errors, et., displayed on the video screen in text
Manchester code communication
diagnosis
Including failure information, e.g., wrong address, baud rate errors s displayed on the video screen in special
characters
Alarm
Alarm input 2
Alarm output 1 relay outputs, alarm response actions configurable
Alarm action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan / Relay output
Input/output
Monitor output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
General
Menu language English
RS-485 protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power supply 24 VAC (12 VDC optional)
Power consumption Max.18 W
Working temperature / humidity 30°C - 65°C(-22°F - 149°F) (outdoor dome) / -10°C-50°C(14°F-122°F)(indoor dome ); 90% or less
Protection Level IP66 standard (outdoor dome); TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Dimensions
Φ
180×239.5mm (
Φ
7.08”×9.43”)(Outdoor)
Φ
165×172.5mm(
Φ
6.50”×6.79”) (Indoor)
Φ
165×167mm(
Φ
6.50”×6.57”) (In-ceiling)
Weight (approx.) 4Kg (8.82Ibs)
