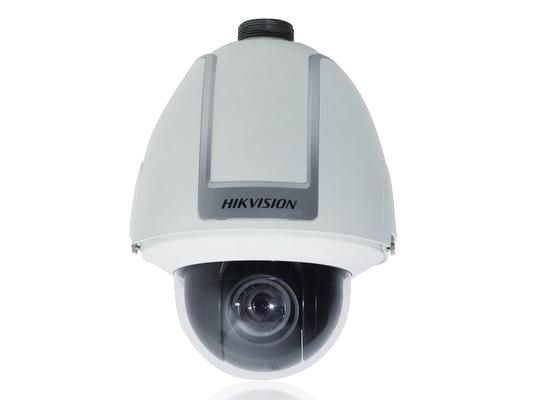

Product : HIK-VISION DS-2AF1-514/516/518



Image sensor 1 / 4’’ Sony Super HAD CCD
Effective pixel PAL: 752 (H) × 582 (V), NTSC: 768 (H) × 494 (V)
Horizontal resolution Color: 540 TVL, B / W: 600 TVL
Signal system PAL / NTSC
Min.illumination
Color: 0.2 lux@F1.6
B / W: 0.02 lux@F1.6
Color: 0.2 lux@F1.4
B / W: 0.02 lux@F1.4
White balance Auto / manual / ATW / indoor / outdoor
AGC Auto / manual
S / N ratio ≥ 50dB
BLC On / off
Shutter time
PAL: 1 / 50 ~ 1 / 10,000s
NTSC: 1 /60 ~ 1 / 10,000s
PAL: 1 ~ 1 / 10,000s
NTSC: 1 ~ 1 / 10,000s
Day & night IR cut filter
Digital zoom 16x
Focus model Auto / semi-automatic / manual
Lens
Focal length 3.84 ~ 88.4mm, 23x 3.5 ~ 105mm, 30x 3.4 ~ 122.4mm,36x
Zoom speed
Approx.5.1s
(optical Wide-Tele)
Approx.5.4s
(optical Wide-Tele)
DS-2AF1-518 (outdoor)
DS-2AF1-508 (indoor)
Color: 0.2 lux@F1.6
B / W: 0.02 lux@F1.6
PAL: 1 ~ 1 / 10,000s
NTSC: 1 ~ 1 / 10,000s
Approx.5.4s
(optical Wide-Tele)
Angle of view 52.2 ~ 2.36° (Wide-Tele) 56.4 ~ 2.0° (Wide-Tele) 57.8 ~ 1.7° (Wide-Tele)
Min. working distance 10 ~ 1,200mm (Wide-Tele) 10 ~ 1,000mm (Wide-Tele) 10 ~ 1,000mm (Wide-Tele)
Aperture range F1.6 ~ F4.5 F1.4 ~ F3.7 F1.6 ~ F4.5
Pan and tilt
Pan range 360° endless
Pan speed Pan manual speed: 0.1° ~ 300° / s, pan preset speed: 540° / s
Tilt range -5° ~ 90° (auto flip) -5° ~ 185° (auto mirror) -5° ~ 185° (auto mirror)
Tilt speed Tilt manual speed: 0.1° ~ 240° / s, tilt preset speed: 400° / s
Proportional zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of preset 256
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the total recording time not less than 10 min
Power loss recovery Support
Park action Preset / patrol / pattern / pan scan / tilt scan / random scan / frame scan / panorama scan
PTZ position display On / off
Freeze frame Support
Password protection Support
Zone scanning / display Scanning within programmed zone, display zone title
Camera title Programmable title display
Compass Support, the north can be set
Scheduled task Preset / patrol / pattern / pan scan / tilt scan / random scan / frame scan / panorama scan
RS-485 communication
diagnosis
Including failure information, e.g., wrong address, baud rate errors, et., displayed on the video
screen in text
Manchester code
communication diagnosis
Including failure information, e.g., wrong address, baud rate errors s displayed on the video screen
in special characters
Alarm
Alarm input 2 (7 alarm inputs optional)
Alarm output 2 relay outputs, alarm response actions configurable (additional wires required)
Alarm action
Preset / patrol / pattern / pan scan / tilt scan / random scan / frame scan / panorama scan / relay
output
Input/output
Monitor output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
General
Menu language English, Chinese
RS-485 protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power supply 24 VAC (12 VDC optional)
Power consumption Outdoor dome: Max.40 W ; Indoor / In-ceiling dome: Max.20 W
Working temperature /
humidity
-30°C ~ 65°C (-22°F ~ 149°F) (outdoor) / -10°C ~ 50°C (14°F ~ 122°F) (indoor), 90% or less
Protection level
IP66 standard (outdoor), TVS 4,000V lightning protection, surge protection and voltage transient
protection
Mounting Various mounting modes optional
Dimensions Φ220 × 325.5mm (Φ8.66” × 12.81”) (outdoor), Φ183.4 × 243mm (Φ7.22” × 9.72”) (indoor)
Weight (approx.) 5kg (11.02Ibs)
