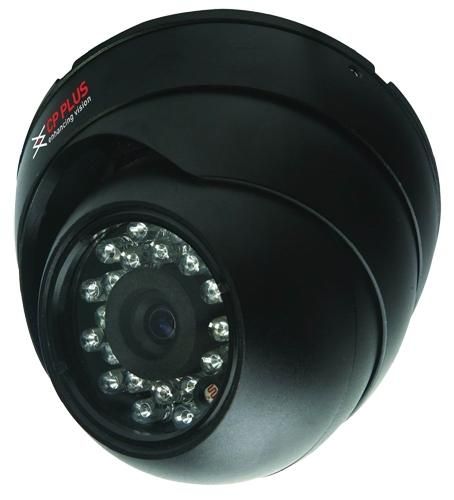

Product : CP PLUS DY42L2
1/3" Sony Super HAD II CCD- 420 TVL Standard Resolution Camera
- 0 lux @ F1.2 (IR ON)
- 3.6 mm Fixed Lens
- IR Range of 20 Mtrs with 24 LED's
- AGC, AWB, BLC
- CE, FCC and RoHS Certified
Feature Specification
Image Sensor 1/3" Sony Super HAD II CCD
Pixels PAL:537Hx597V, NTSC:537Hx505V
Resolution 420TVL
Min. Illumination 0 lux @ F1.2 (IR ON)
S/N Ratio more than 48dB
Electronic Shutter 1/50(1/60) - 1/100000 Sec
Flickerless Mode Yes
Gamma Correction 0.45
White Balance (AWB) Auto
Gain Control (AGC) Auto
Back Light Compensation Auto
IR 24 LEDs, Upto 20 Mtrs
Sync Internal
Video Output 1.0 Vp-p/75 ohm
Power Supply DC 12V ± 5%
Power Consumption <5W
Dimensions 93(C)×80(H)mm
Weight 160g
Operating Temperature -10~50 °C
Certifications CE, FCC, RoHs
