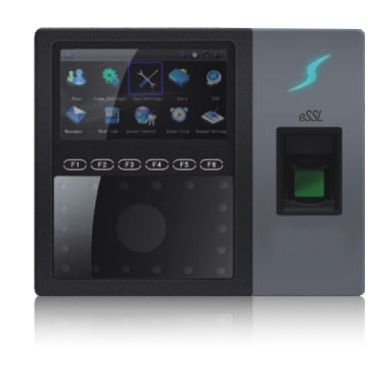

Product : ESSL IFACE 202



IFACE 202 - Standalone Face Time and attendance CumAcess control
Product Description
IFace 202 multi-biometric identification time attendance and access control terminal adopts latest Face 7.0 algorithm and large capacity memory. I Face series integrated 630MHz high speed Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of I Face are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP, optional Wi-Fi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure

Technical Specification
ï‚· Dimension(WxHxD): 193.6 X 147.6 X 101 mm
ï‚· Face Capacity: 400 (1:N) /700(1:G) /3000(1:1)
ï‚· Fingerprint Capacity: 2000
ï‚· ID Card Capacity: 10,000
ï‚· Transaction Storage : 1,00,000
ï‚· Camera : High Resolution Infrared Camera
ï‚· Communications: RS232 ,RS485, TCP/IP
ï‚· USB-HOST: Two USB-Host
ï‚· Processor: Multi-Bio CPU 630 MHz
ï‚· Hardware Platfor : 600 Multi-Medium Development Platfrom
ï‚· Identification time : < =2S
ï‚· FAR: <=0.0001%
ï‚· FRR: <=1% Operating
ï‚· Temperature : 0°C - 45°C
ï‚· Operating Humidity : 20%-80%
ï‚· Fingerprint Sensor: Optical Fingerprint Sensor without film
ï‚· Acess Control Interface: 3rd party Electric lock, Door Sensor, Exit button
ï‚· Power Supply: 12V DC ,3A
ï‚· Access Attendance Standard Function: ID Card ,Automatic Status Switch ,Self-Service ,T9 Input
ï‚· Optional Function: Mifare Card ,Short MAssage ,WebServer ,GPRS ,Batrry Back (200 mA) ,Work Code ,DLST ,9 Digit User
ï‚· Wigand Signal: Output
ï‚· Alogrithm Version: Face 7.0
ï‚· Display : 4.3 Inch TFT Screen
